Shanghai Zhongtuo Magnet Wires Co.,Ltd.

Shanghai Zhongtuo Magnet Wires Co.,Ltd. is a modern enterprise specializing in the R&D, manufacture and sevice of magnet wire. The head office is located at No.333 Changye Road, Sheshan industrial park, Songjiang District, Shanghai. The company has a modern factory that covers an area of 46656㎡ and has a floorage of 32000㎡and has taken the lead in importing the magnet wire production and inspection equipment of the advanced international standards. The annual output of magnet wire is over 7,000 tons. At present, the company’s main products now are enamelled copper (aluminum) wire, ultra fine rectangular wire ...

Hot Products


Diameter Range (mm): Round:1.0-10.0
Diameter Range (mm): Flat:a:1.0-10.0 b: 3.0-35.0
Thermal Class: 120C
Standard: IEC, NEMA, GB, JIS
Package: 30kg/50kg/150kg wooden spool or according to customers requirements.

View More >

Diameter Range (mm): Round: 1.0-7.0
Diameter Range (mm): Flat: a: 1.0-7.0 b: 3.0-35.0
Thermal Class: 155C, 180C
Standard: IEC, NEMA, GB, JIS
Package: 30kg/50kg/150kg wooden spool or according to customers requirements.

View More >

Diameter Range (mm): thickness: 0.80-5.60mm width: 2.00-16.00mm
Width/thickness ratio:1.4<w/t<8.0
Thermal Class: 130C, 155C, 180C, 200C, 220C
Standard: IEC, NEMA, GB, JIS
UL No:E338133
Package: Plastic spool, Wooden spool and according to customers requirements.

View More >

Diameter Range (mm): 0.3-6.5;
Diameter Range:AWG2- AWG32, SWG3-SWG35
Thermal Class: 130C, 155C, 180C, 200C, 220C
Standard: IEC, NEMA, GB, JIS
UL No:E338133
Package: PT25, PT30, PT60,PT90,PT200
Package:Wooden spool and according to customers requirements.

View More >

Lots of successful projects are not published on website

Production workshop


If you are interested to be our agent in your market, we will be your strong backup.

Enameled Aluminum Wire
  • Enameled Aluminum WireEnameled Aluminum Wire

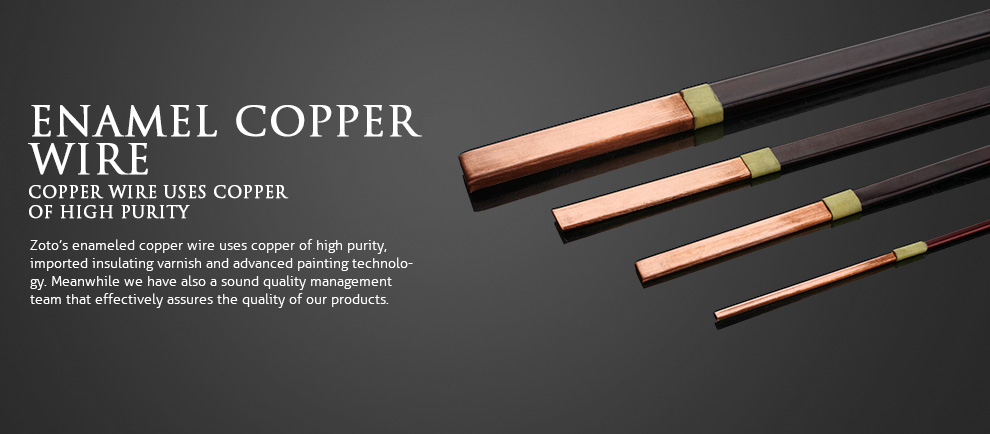

  • Enameled Copper WireEnameled Copper Wire

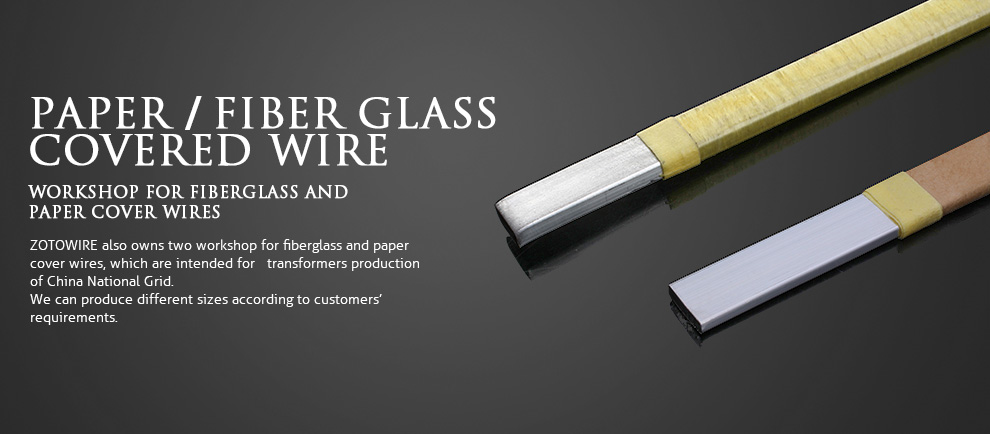

  • Fiber Glass / Paper Covered WireFiber Glass / Paper Covered Wire

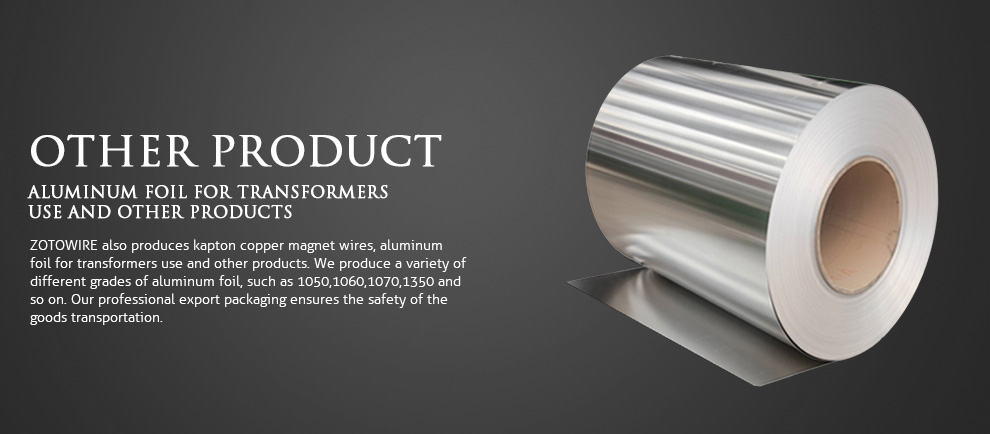

  • Other ProductsOther Products

If you have questions, our quick-response customer support is here for you.

Exhibition


News


The Splicing Method of Magnet WiresThe Splicing Method of Magnet Wires

Magnet wires is used to wind motos and transformers. No matter for rewinding or repairing, the conductors need to be splicing. Let’s get to know the three different basic joint method of winding wires.

View MoreThe Splicing Method of Magnet Wires28
Technology Development Direction and Market Trends of Medium and Small Sizes and Ultra Fine Enameled WireTechnology Development Direction and Market Trends of Medium and Small Sizes and Ultra Fine Enameled Wire

According to statistics from relevant professionals and industrial survey data, at present, the demand of enameled wire in our country is about 600,000 tons, and it is estimated that it will reach to 1.1 million tons at the end of the 11th five-year plan, of which the enameled wire with medium and small sizes accounts for about 45%. The main application areas are small appliances, automotive motors, power tools, communications, electronic information and micro-motor industries. With the increase of product categories in these industries, the continue upgrading of products, many types of electronic components have higher requirements on the varieties and quality of enameled wire used. In addition to further improve on four major performance indicators of common used enameled wire, but also added many special features to meet specific functional requirements, or to improve applicability and reduce enameled wire production cost. Such as: thinning, lightweight, high self-adhesive, tension characteristics, consistency of winding parameters, high frequency and high pressure characteristics, high Q value characteristics, thermal fusibility, heat resistance, refrigerant resistance, shaped, non-magnetic, high conductivity and so on. The development of enameled wire technology also put forward higher requirements on production process management, such as production technology, production equipment, personnel quality, production environment, testing methods and materials applications

View MoreTechnology Development Direction and Market Trends of Medium and Small Sizes and Ultra Fine Enameled Wire53
Influence of Conductor Material and Enameled Paint on the Quality of Enameled WiresInfluence of Conductor Material and Enameled Paint on the Quality of Enameled Wires

Conductor material It is well-known that the production of magnet wire requires the use of high-quality copper, which is more important for enameled wire production. However, the commonly used oxygen-free copper rod and the electro-mechanical toughening copper rod have different drawing and annealing characteristics due to different manufacturing technologies. High flexibility of the electromagnetic wire products recommended for the use of electrical tough pitch rod as conductor material. Although the importance of conductor quality has been recognized by more and more enterprises, but the rational use of drawing equipment, lubricant continuous monitoring, mold matching, maintenance and other aspects are far less than the follow-up process as much emphasis on. Foreign studies have shown that the surface quality of the enameled wire and paint film continuity defects caused by 10% of the reason from the copper Drawing process, which is sufficient to demonstrate the importance of applied research on conductor materials.

View MoreInfluence of Conductor Material and Enameled Paint on the Quality of Enameled Wires55
